Schneider Gutor SDC

Operates from 40° C up to 55° C
Steel enclosures to meet vibrations as well as vertical- and horizontal acceleration stress
High protection class up to IP42
Optional airfilters to reduce the risk of failures due to pollution

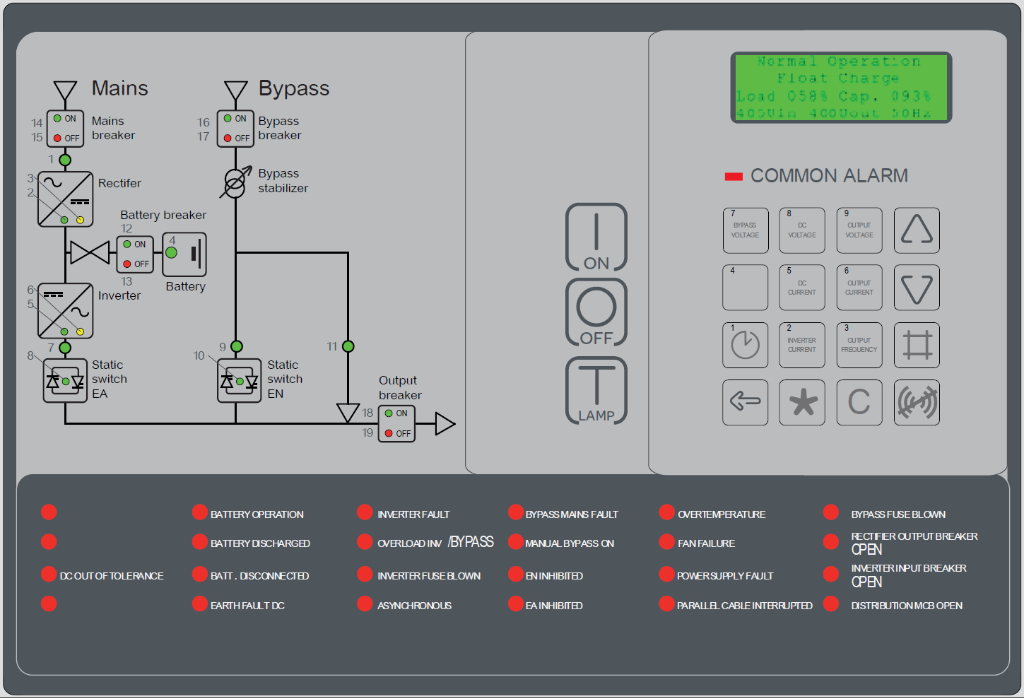

It is divided into three sections:

Control and display, consisting of an LCD screen, indication LEDs for operating modes, and pushbuttons to navigate thru the display menus & control the UPS.
Mimic diagram with multip-color LED indicateing the current operational status of the system and its components. It clearly indicates the power path currently supplying the load and the availability of the other supplies.
System alarms and external signals can be flexibly assigned to LEDs for visualization.

The Gutor SDC is also capable to monitor external components & systems such as a Battery Monitoring System (BMS), transformers, and fan speed monitoring.

Schneider Gutor SDC

The Gutor SDC is a full industrial UPS designed for the harshest environments. The highly customizable Gutor SDC works effortlessly with your facility monitoring systems and offers full and clear industrial design, high protection class (IP 42) as well as seismic design up to 1g and a wide temperature range from -10 to +55° C. It comes with integrated isoliation transformers to guarantee a full galvanic isolation, and features top and bottom cable entry. With full front service access, back to the wall installation is possible.
